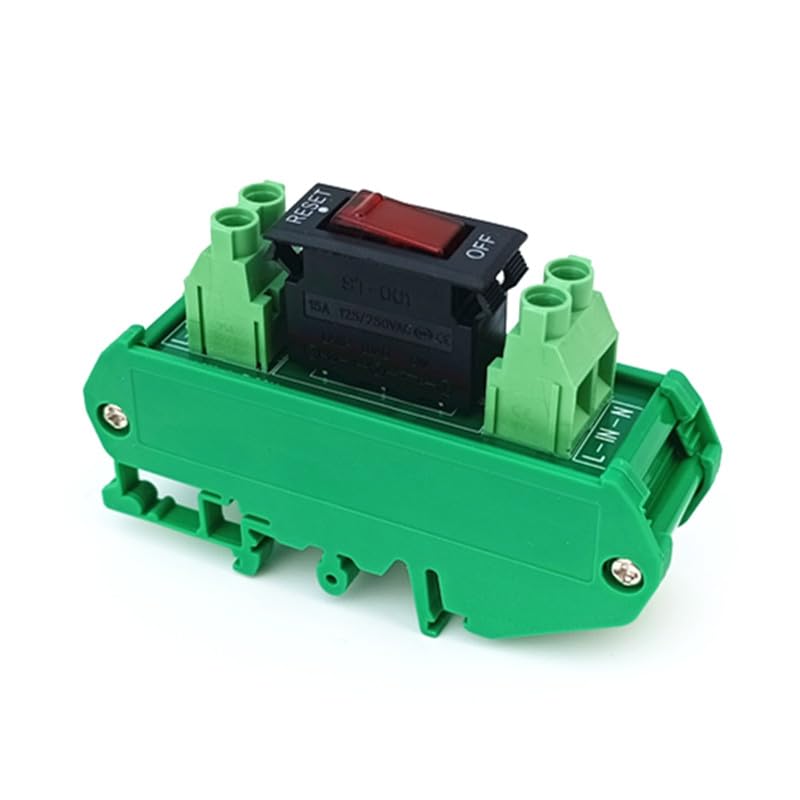

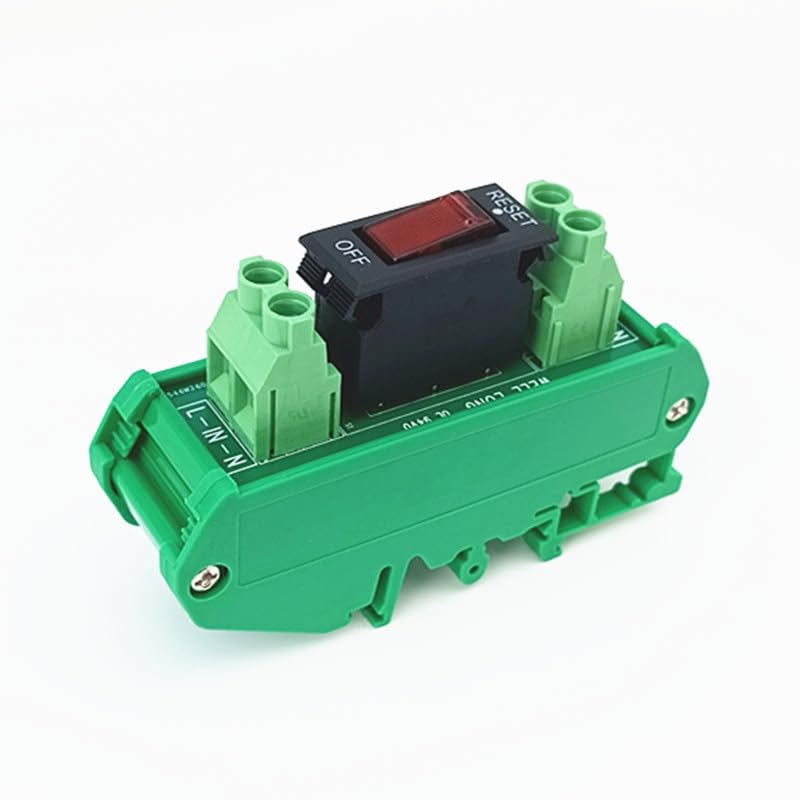

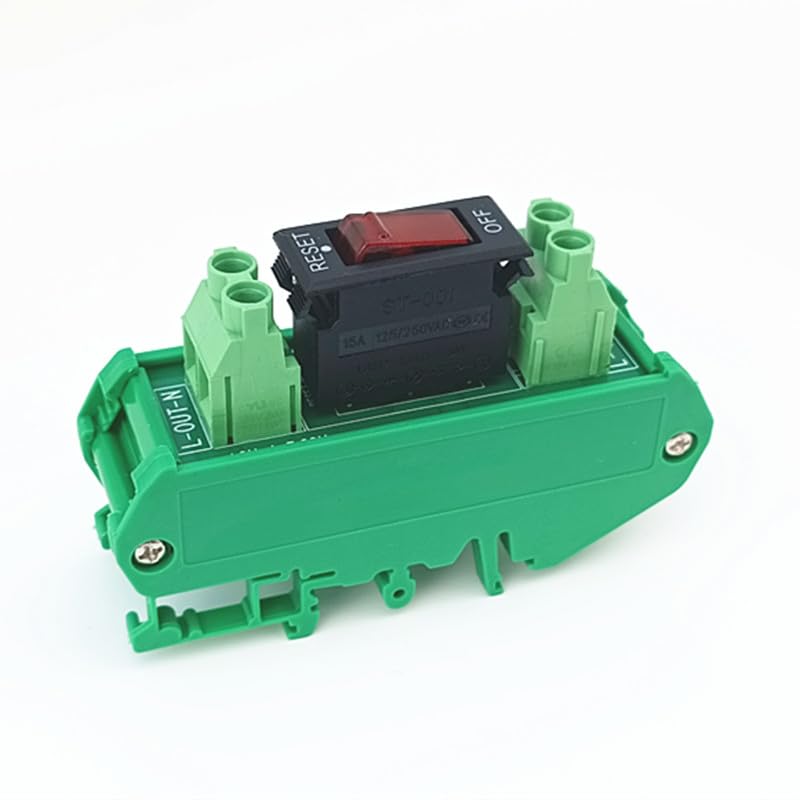

DIN Rail Mount Rocker Switch Thermal Circuit Breaker Overload Protector Module.
Product details
| Management number | 247179765 | Release Date | 2026/08/16 | List Price | US$5.19 | Model Number | 247179765 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Input voltage AC 125 or 250V 50/60Hz. Maximum total input current 15A. 2, Maximum output current 15A. 3, 15Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off. 4, Terminal Blocks: Pitch 7.62mm(0.3" inch), Wire range 26AWG to 10AWG(4.0mm square), Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
- , Input voltage AC 125 or 250V 50/60Hz. Maximum total input current 15A.
- Maximum output current 15A.

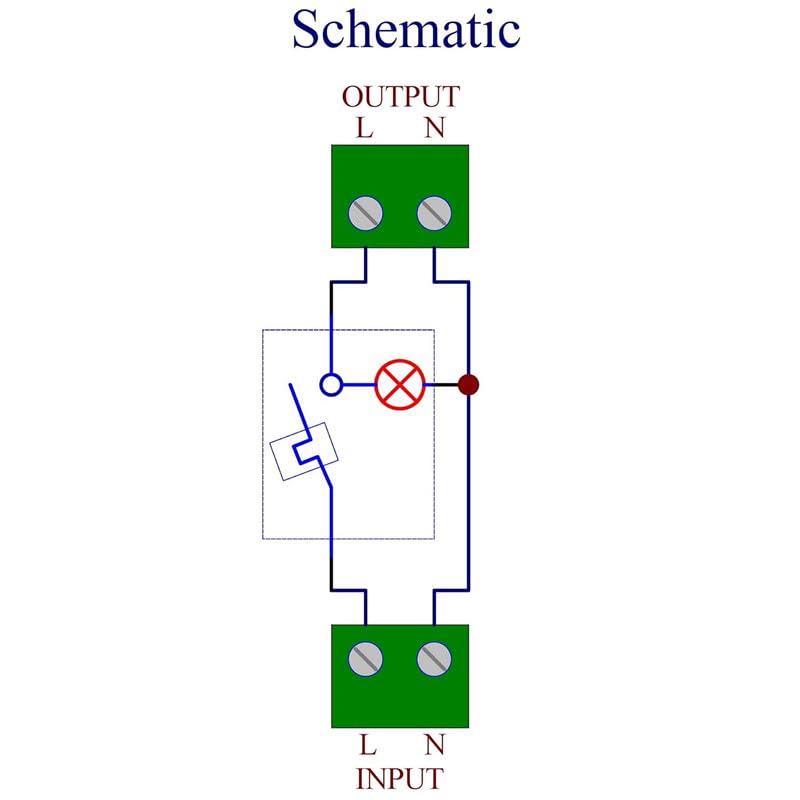

- 15Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off.
- Terminal Blocks: Pitch 7.62mm(0.3" inch), Wire range 26AWG to 10AWG(4.0mm square), Strip length 8mm. Screws - M3, steel, Cr3+ Zn plated. Pin header and Cage - Brass.

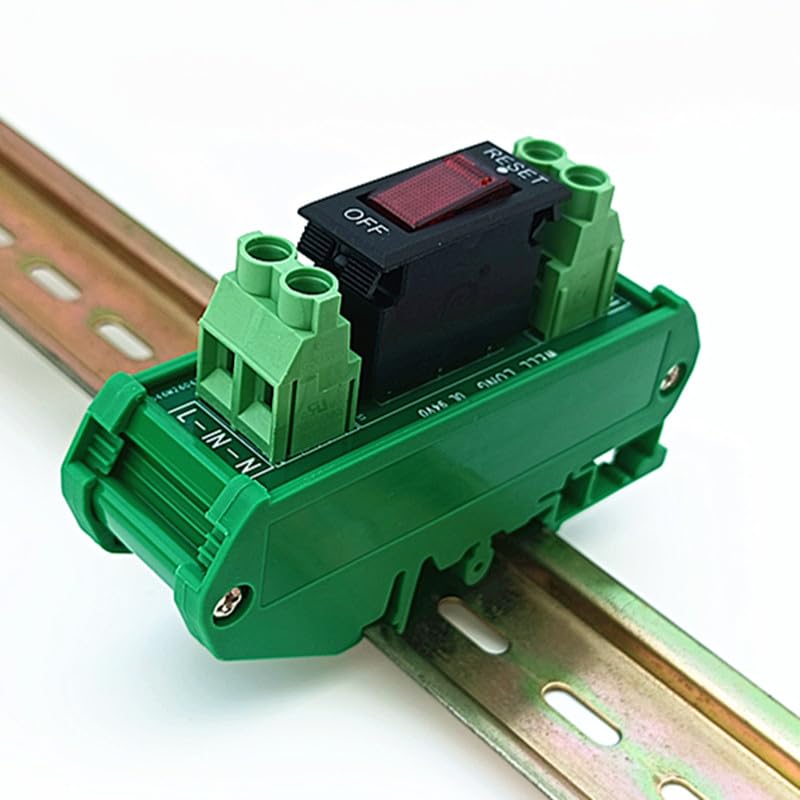

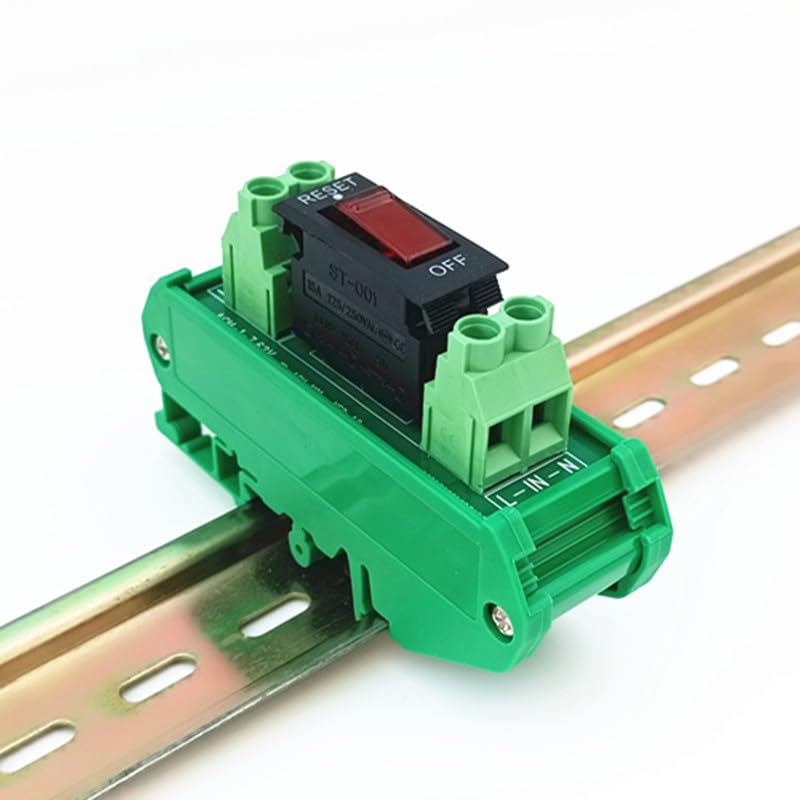

- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
| ASIN | B0H3Q3YQRC |
|---|---|
| Model | WL-ACM-1101-A3 |
| Brand Name | SZ-WEEL LONG |
| Part Number | WL-ACM-1101-A3 |
| Manufacturer | XUHONG |
| Mounting Type | DIN Rail Mount |
| Current Rating | 15 A |
| Number of Items | 300 |
| Number of Packs | 1 |
| Number of Poles | 1 |
| Included Components | Rocker Switch |
| Circuit Breaker Type | Standard |
