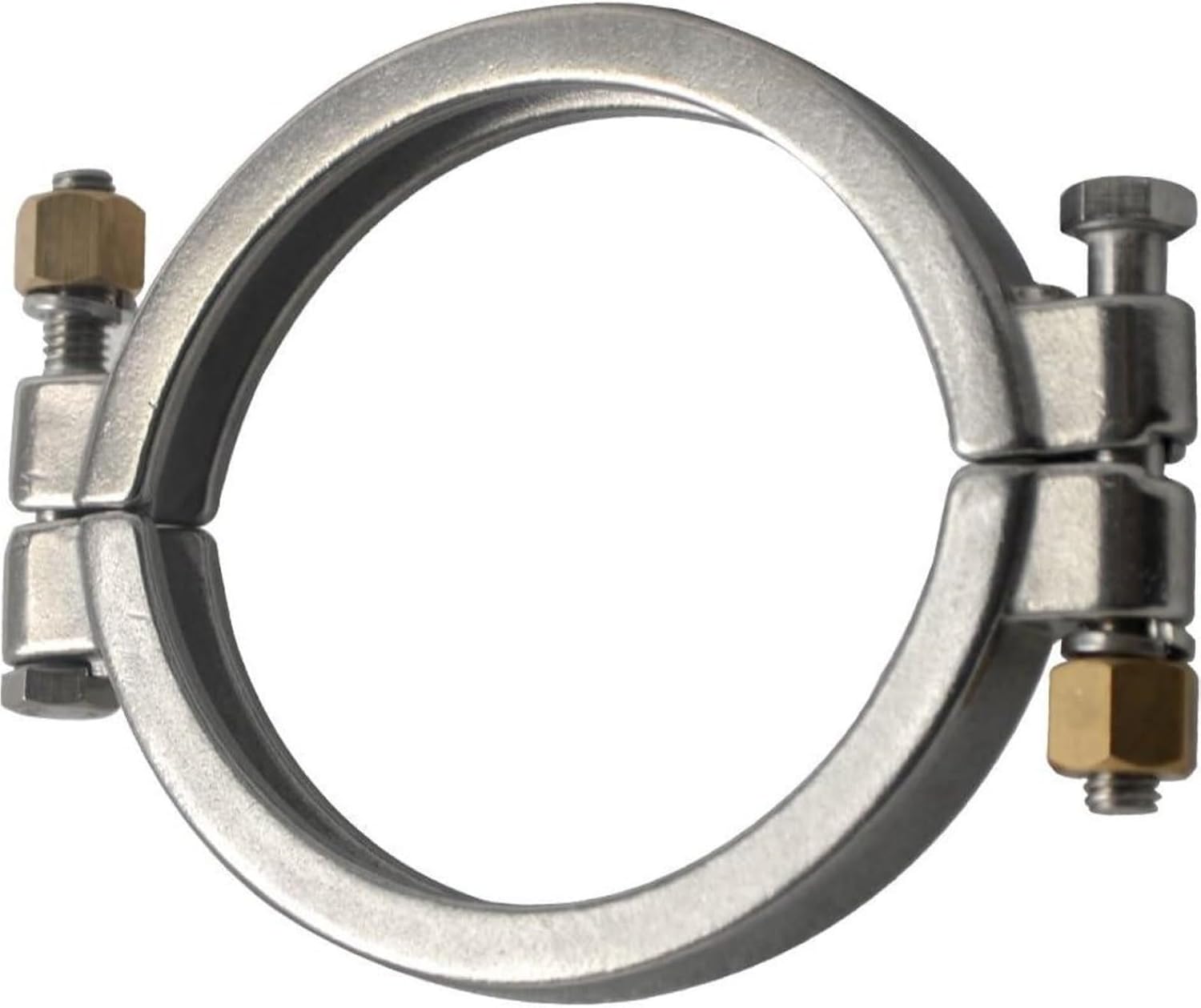

1pcs Heavy Duty 304 Stainless Steel High Pressure Tri-Clamp with Brass Nuts for Sanitary Applications(10")

Product InformationHigh-Pressure Doulble Bolted Tri-ClampsSize (Tube OD): 1/2" - 3/4"/1"-1.5"/2.0"/2.5"/3.0"/3.5"/4.0"/4.5"/5.0"/5.5"/6.0"/8.0"/10"/11"/12"Service Pressure Rating at 70°F: 1500Service Pressure Rating at 250°F:1200Dimensions A: 1.062 (View The Photo)Nuts Are Brass.Ressure Ratings Assume Wing Nut Tightened To 20 ft/lb Of Torque.Maximum Pressure @ 70F 1500 PSI;Maximum Pressure @ 250F 1200 PSIWe use these clamps on all of our safe blast and closed loop systems to join the tri clamps together.Our High pressure clamps are made out of 304 stainless steel and lock together using a stainless steel bolt and brass nut.The bolt devise of these sanitary clamps enables them to withstand higher pressures than hinged clamps of same size.Pressure ratings vary by processing temperature and torque applied for tightening. Recommends that you tighten all High Pressure Clamps to 20-30LBS of torque. Do do not tighten high pressure bolts with an impact gun as this may cause threads to jump or be stripped which can cause failure of the nuts or gasket.

• Constructed from durable 304 stainless steel, our high-pressure tri-clamps ensure long-lasting performance and erosion resistance.
• devised to withstand maximum pressures of 1500 PSI at 70°F and 1200 PSI at 250°F, making them ideal for safe blast and closed loop systems.
• Features a robust bolt devise that surpasses the pressure capabilities of traditional hinged clamps, ensuring secure and reliable connections.
• Includes brass nuts that provide a secure fit and easy installation; recommended torque tightening of 20-30 lbs for optimal performance.
• Versatile sizing options available from 1/2" to 12", accommodating a wide range of pipe diameters for various industrial applications.
